Power Quality Analyser
Power Quality Analyser – Real-Time Electrical System Monitoring
Poor power quality leads to:
- Higher energy losses
- Frequent tripping of electrical equipment
- Overheating of cables, transformers, and panels
- Reduced life of electrical assets
How Harmonics Impact Your Electrical System
- Increase in kVA demand and electricity bills
- Overheating of transformers and capacitors
- High neutral current even at balanced loads
- Nuisance tripping of breakers and protection devices
- Malfunctioning of sensitive equipment
- Failure of capacitor banks and reduced efficiency of APFC panels
Most plants are unaware of harmonic issues because these problems cannot be identified through normal energy meters. Our in-house developed Power Quality (PQ) Analyser helps industries gain real-time visibility of their electrical system and take data-driven corrective actions.

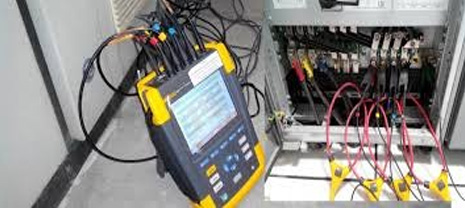

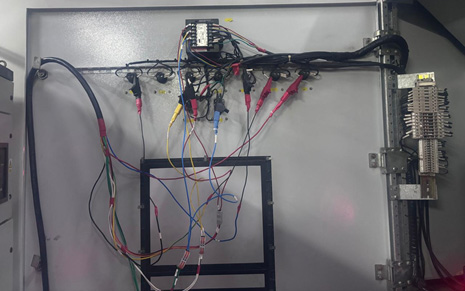

We install our Power Quality Analysis Demo Kit at your plant to continuously monitor critical electrical parameters and identify hidden power quality issues — before they turn into costly problems.
Power Quality Parameters
- Voltage & Current THD (Total Harmonic Distortion)

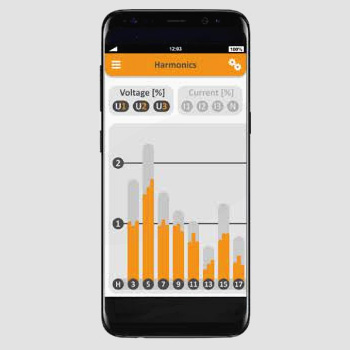

- Harmonics analysis up to 51st order
- THDi measurement
- Phase sequence & phase angle
- Voltage & current unbalance
- Neutral current issues
- Load profile & load trend analysis
Energy & Load Monitoring
- Total connected & running load
- Active, Reactive & Apparent Energy
- Import & Export Energy
- Maximum Demand (kW / kVA / kVAr)
- Power Factor (Leading / Lagging)
- Demand interval & slip time settings
Cloud-Based Monitoring
Anytime, Anywhere Access

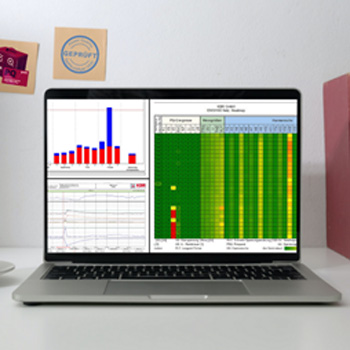

All measured data from our PQ Analyser is securely uploaded to our cloud-based dashboard, allowing you to access live and historical data on:
This enables plant engineers, maintenance teams, and management to monitor the real health of the electrical system anytime, from anywhere.
Data-Driven Industrial Energy Audit Report
Based on live readings from our Power Quality Analyser, our expert team conducts a detailed Industrial Energy Audit.
Our Audit Report Clearly Highlights:
- What’s going wrong
(Low Power Factor, High Harmonics, Neutral Current issues, Load imbalance) - Where it’s happening
(Exact panels, feeders, or sections) - What solution is actually needed
- Power Factor Correction ( SVG/ASVG)
- Electrical Load Balancing(AHF)
- Harmonic Mitigation (AHF)
- Neutral current mitigation(AHF)
This ensures you invest only in what your plant truly needs, avoiding unnecessary capital expenditure while maximizing energy savings.
Why Choose Our Power Quality Analyser?
- Developed In-House – Hardware, firmware & programming done by our own engineering team
- High Accuracy – Active Energy Class 0.5S
- True RMS Measurement
- RS-485 Communication (Modbus-RTU)
- CT Operated (1A / 5A)
- AC / DC Auxiliary Supply (85–265V)
- Ideal for Industries, Commercial Buildings & Utilities
Applications of Our PQ Analyser
- Manufacturing Plants
- Data Centers
- Commercial Buildings
- Hospitals
- Renewable Energy Systems
- Utilities & Substations
- VFD & Non-Linear Load Applications
Want to See What’s Really Happening in Your Electrical System?
Take the first step towards energy savings with our Power Quality Analysis Demo.
Book a Power Quality Survey
Upload your latest electricity bill
- Talk to our Power Quality Expert
- Get real-time insights into energy losses
Detailed Report Solutions Recommended
Identify savings through:
- Power Factor Correction
- Electrical Load Balancing
- Harmonic Distortion Monitoring
If You Can’t Measure It, You Can’t Improve It
Our Power Quality Analyser empowers industries to measure accurately, analyze intelligently, and improve continuously.
